A Guide to Gentle Mixing for Pharmaceuticals and Food: The Tilting Double Cone Solution

Tilting Double Cone Mixer for Pharmaceutical and Food Gentle Blending

In the pharmaceutical and food industries, product integrity is paramount. Active pharmaceutical ingredients (APIs), delicate food powders, and granular products can be easily damaged by high‑shear mixing forces. The Tilting Double Cone Mixer offers a proven solution: a gravity‑driven, gentle tumbling action that achieves homogeneous blending without compromising sensitive materials. This guide explores why this technology is the preferred choice for applications requiring a low‑impact, high‑uniformity mixing process.

The Challenge of Mixing Sensitive Materials

Many dry powder blending processes face a common dilemma: achieving homogeneity without damaging the product. High‑speed agitators or forced mixers can generate heat, break fragile crystals, or cause attrition of granules. For applications like pharmaceutical granulations, spice blends, or baby food production, preserving particle size and structure is critical. The double cone blender addresses this challenge through its fundamental operating principle, which relies on gravity rather than mechanical force to mix materials.

How the Tilting Double Cone Mixer Works

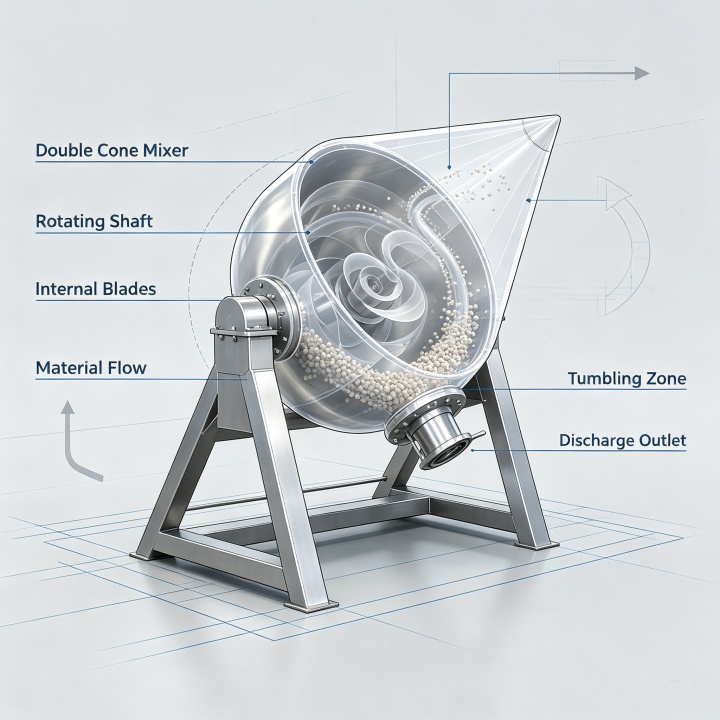

The mixer's geometry—two frusto‑conical sections joined at a central cylinder—creates a complex but gentle mixing action. As the cone rotates around its horizontal axis, the material is carried upwards, then cascades and tumbles across the vessel's cross‑section. This end‑over‑end tumbling motion, often enhanced by internal deflector plates, promotes axial and radial mixing with minimal particle stress. Unlike V‑type blenders, which typically handle materials with similar bulk densities, the double cone design excels at blending particles of varying densities and sizes.

Key Advantages for Pharmaceuticals and Food

Gentle Processing of Fragile Products

The gravity‑driven tumbling action of a tilting double cone mixer eliminates the shear forces common in mechanical agitators. This makes it ideal for processing:

Pharmaceutical granules and API blends that must remain intact for tablet compression.
Food products such as coffee beans, cocoa flakes, powdered milk, and dehydrated soups.
Cosmetic powders like talc and face powders where particle size distribution affects final product feel.

Hygienic, GMP‑Compliant Construction

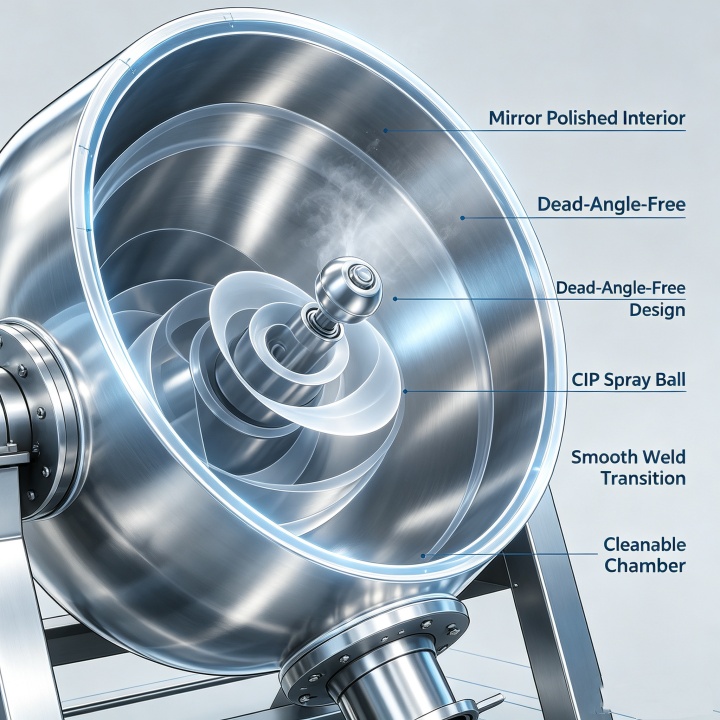

For industries with strict hygiene requirements, these mixers are available in AISI 316L stainless steel with a mirror‑polished internal finish (Ra < 0.8 μm), meeting GMP and FDA standards. The absence of internal shaft seals and dead spaces prevents contamination and facilitates thorough cleaning—both manually and via Clean‑in‑Place (CIP) systems. This ensures rapid changeovers between batches and eliminates cross‑contamination risks.

Versatile Tilting for Complete Discharge

The tilting mechanism allows the cone to rotate up to 360 degrees, enabling positioning for loading, discharge, and cleaning. This design ensures complete discharge of material, minimizing product waste and eliminating batch‑to‑batch carryover. The discharge system, typically a hygienic butterfly valve, can be operated manually or pneumatically for dust‑free operation.

Predictable and Efficient Blending

With standard mixing cycles of 5 to 20 minutes and a recommended fill volume of up to 65% of total capacity, the tilting double cone mixer delivers efficient and predictable results. Optional features like internal agitator bars or liquid spray systems further expand its capabilities, handling cohesive materials or wet granulation processes.

Comparing Double Cone with Other Blenders

For pharmaceutical and food manufacturers, the tilting double cone mixer provides an optimal balance of gentle mixing, hygienic design, and operational flexibility. By relying on gravity‑driven tumbling, it protects fragile ingredients while delivering the homogeneous blends critical for product quality and safety. Its robust construction, ease of cleaning, and compliance with global GMP standards make it an indispensable tool for modern processing lines.
