Mobile Pig Feed Mixer features high-strength casters and a traction device at the bottom, allowing it to move nimbly between different pig pens and feed storage areas without requiring a fixed installation site. It is particularly suitable for pig farms with dispersed locations and limited space. The equipment uses a horizontal tank design with a volume ranging from 500L to 3000L, allowing for precise matching of production capacity according to the scale of the operation, suitable for small-scale farms with hundreds of pigs to medium-sized farms with thousands. Parts in contact with the material are made of high-quality stainless steel, which is corrosion-resistant, easy to clean, and avoids feed contamination. The smaller model can operate on a 220V household power supply, completely eliminating reliance on three-phase electricity.
We offer both ribbon-type and small-sized Mobile Pig Feed Mixers, tailored to our customers' usage scenarios. These are suitable for use in factory areas and small-scale home environments, respectively. The two models differ in their appearance, structure, and functionality.

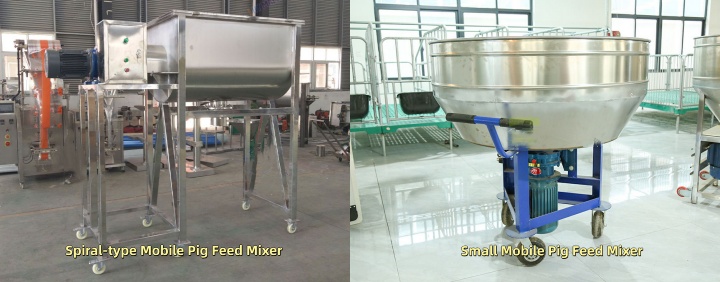

Spiral-type Mobile Pig Feed Mixer:This is the mainstream model on the market. Its core features a single/double spiral ribbon mixing component. Through the counter-rotating inner and outer spiral ribbons, it drives the feed to form a complex motion of axial convection and radial diffusion, allowing main ingredients such as corn and soybean meal to be fully mixed with trace elements and probiotics. The equipment adopts a fully enclosed horizontal tank design, equipped with a traction device and casters for flexible relocation. The discharge speed can be adjusted as needed. It is suitable for both dry and wet feed mixing and is widely used in batch feeding scenarios in medium-sized pig farms and breeding cooperatives.
Small Mobile Pig Feed Mixer: Primarily used by rural households and small family pig farms. The machine is lightweight and compact, powered by a 220V household power supply, and easily pushed by a single person. This model features a simple single spiral ribbon or paddle mixing structure. Although the processing capacity is smaller per batch, its advantages lie in its ease of operation and small footprint, meeting the daily feeding needs of 50-200 pigs.
The Mobile Pig Feed Mixer, with its three core advantages of mobility, rapid mixing, and ease of operation, has become the preferred equipment for small and medium-sized farms. Equipped with casters and a traction device, it eliminates the need for fixed installation during relocation.
Mobility: The high-strength casters and traction device allow for flexible movement between different pigsties and feed storage areas, eliminating the need for a fixed installation site.
Nutritional Balance: Through a combination of axial pushing and radial diffusion, it fully integrates main ingredients such as corn and soybean meal with trace additives like vitamins and minerals, improving feed utilization.
Variable Frequency Speed Control: The mixing speed can be flexibly adjusted according to the type of feed, preventing material agglomeration or over-grinding.
Wide Applicability: Supports mixing various types of raw materials, including dry powder feed, wet feed, fermented feed, and crushed forage.
Fast Mixing Speed: Each batch can mix 80-100 kg of dry feed and 150-200 kg of wet feed, completing 6-8 batches per hour, with a total capacity exceeding 1000 kg.
The Mobile Pig Feed Mixer features a high-efficiency ribbon mixing component. A motor-driven reducer rotates the mixing shaft, and the ribbon blades push the feed axially while simultaneously creating a radial diffusion motion. This ensures that main ingredients such as corn, soybean meal, and wheat bran are fully mixed with trace additives like vitamins, minerals, and probiotics, guaranteeing balanced nutrition in every feed and preventing growth differences in pigs due to uneven feed intake.
| Model | LHY-0.25 | LHY-0.5 | LHY-1 | LHY-1.5 | LHY-2 | LHY-3 | LHY-4 | LHY-6 | LHY-8 | LHY-10 |
| One-time mixing (kg) | 100-150 | 200-300 | 400-600 | 600-900 | 800-1000 | 1200-1800 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 |
| Mixing time (min) | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 |
| Mixing speed (r/min) | 60 | 55 | 45 | 40 | 35 | 25 | 25 | 20 | 15 | 15 |
| Motor power (kw) | 3-5.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
| Weight (kg) | 500 | 900 | 1800 | 2500 | 3200 | 4100 | 5100 | 6300 | 7500 |
We have deep expertise in the livestock equipment industry, boasting a diverse customer base covering rural small-scale farmers, medium-sized pig farms, and ecological breeding bases. We can recommend suitable Mobile Pig Feed Mixer models based on different breeding scales, site conditions, and feed types.
Feeding 50 pigs: Previously, feed was manually mixed with wooden sticks, taking 1.5 hours per batch and resulting in uneven mixing of premixed feed and medications. After introducing the 200L small mobile pig feed mixer, the equipment uses a 220V single-phase power supply, requiring only plugging in to operate. Equipped with a three-wheeled mobile structure, it mixes 150 kg of dry feed in just 5 minutes, significantly improving mixing uniformity.
Feeding 800 pigs: The pigsties are arranged in long rows. Previously, fixed mixing equipment was used, requiring manual transport of feed using carts, which was inefficient and prone to waste. After selecting the 800L horizontal mobile pig feed mixer, it can be flexibly moved between pigsties via a towing device connected to an electric vehicle. After simple modifications, the equipment, equipped with a sliding cable guide, allows for simultaneous pushing and feeding into the troughs.
300-head organic pig feed mixing: This requires a mixture of fermented feed and Napier grass stem powder. Previously, the large weight of wet feed and the difficulty of manual mixing hindered large-scale deployment. Using a 1200L dual-purpose (dry and wet) mobile pig feed mixer, with a stainless steel tank to prevent corrosion and contamination from fermented feed, it can mix up to 200 kg/batch of wet feed. The powerful geared motor easily mixes coarse fibrous materials such as grass stem powder, achieving uniform mixing in just 5 minutes. It can also be moved to the fermentation area for on-site mixing.
When selecting a suitable mobile pig feed mixer, it's essential to first plan and measure based on your specific needs, and then determine whether the location of the discharge port needs to be changed, considering your production space.
Choose the capacity based on needs: Match the machine precisely to the number of pigs and the amount of feed per feeding. Small farms can choose models that can mix 80-100 kg of dry feed and 150-200 kg of wet feed per feeding, meeting needs while avoiding resource waste. Medium and large farms are advised to choose customized models of 2 tons or more to ensure continuous operation efficiency.
Choose the structure based on feed type: Different feed types correspond to different mixing structures. For dry feed mixing, a ribbon structure is preferred. For mixing wet feed, fermented feed, or materials containing coarse fibers, a double ribbon model with stronger mixing power or a paddle-type model with crushing function is needed to prevent material agglomeration and insufficient mixing.
Choose the material based on material characteristics: For ordinary dry feed mixing, a high-quality carbon steel model is suitable for cost-effectiveness. For mixing fermented feed or materials containing acid and alkali additives, stainless steel is required to prevent equipment corrosion and feed contamination.
Manufacturer selection: First, determine if the manufacturer offers customized solutions to avoid equipment parts that do not meet the feeding site requirements. Also, confirm if the manufacturer is a direct supplier to avoid middlemen markups.
The Mobile Pig Feed Mixer manufactured by DaHan Machinery starts at $300. Price differences mainly depend on the equipment volume, mixing structure, and functional configuration. Small carbon steel models under 500L meet the basic mixing needs of small-scale farmers and offer excellent value. 1000-2000L stainless steel ribbon mixers are suitable for medium-sized pig farms; the price is adjusted accordingly due to material upgrades and improved mixing efficiency. Customized models with added weighing modules, variable frequency speed control, or dry/wet mixing functions will increase the price of the basic model. We are a direct supplier with no middlemen, and can customize the right mixer for your mixing needs and scenarios.
We are a source manufacturer supporting customized Mobile Pig Feed Mixers. We have standardized production facilities and a professional R&D team, focusing on the design and manufacturing of various mobile models. Our products cover small models under 500L to large models of 3000L, suitable for small-scale farmers, medium-sized pig farms, and other scenarios. Offering high-quality carbon steel and stainless steel construction, and supporting customized functions, we provide a one-stop manufacturer service from selection consultation and commissioning to spare parts supply.
The Mobile Pig Feed Mixer stands out for its flexibility, high-speed mixing, and adaptability to various feeds. It eliminates site limitations, quickly and evenly mixing various raw materials, saving labor and time costs. Choosing a high-quality mobile pig feed mixer lays a solid foundation for stable production and efficient development in pig farms, helping to improve breeding efficiency.
