Glutinous Rice Flour Ribbon Mixer is a core piece of equipment for processing pastries, glutinous rice balls, and other glutinous rice products. It ensures thorough mixing with over 99% uniformity. All parts of the machine that come into contact with materials are made of 304/316L stainless steel, with mirror-polished inner walls that meet food hygiene standards. It is easy to clean and leaves no residue. It can meet the production capacity requirements of multiple specifications with a single feeding operation. Customized configurations such as unloading methods, speed control systems, and dust-proof feeding are available to meet your production needs, providing a tailored solution for mixing glutinous rice flour.

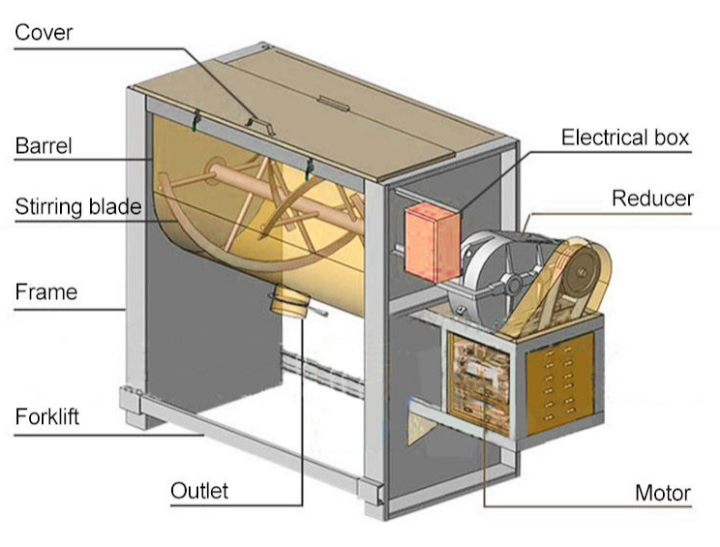

The Glutinous Rice Flour Ribbon Mixer features a food-grade horizontal integrated structure, consisting of a food-grade U-shaped cylinder, a double-ribbon mixing system, a transmission drive system, a discharge system, and auxiliary protective components. The U-shaped cylinder has a smooth, rounded design with no dead corners, and its inner wall is mirror-polished to prevent sticking. The double-ribbon design uses a double-layer reverse direction and is paired with a solid, wear-resistant through shaft, ensuring gentle mixing without damaging the powder. The transmission system consists of a variable frequency motor and a planetary reducer, equipped with food-grade seals to prevent dust ingress. An arc-shaped discharge port at the bottom, equipped with a food-grade butterfly valve, ensures thorough and residue-free discharge. A sealed feed inlet is located at the top of the cylinder, and a sight glass and level gauge can be added as needed.
This Glutinous Rice Flour Ribbon Mixer is made of food-grade stainless steel, meeting hygiene standards. It provides gentle mixing without damaging the flour particles, ensuring high uniformity in both powder and liquid mixing. It is non-stick, easy to clean, and suitable for processing various glutinous rice products.
Gentle Mixing: Utilizing a double-layer, reverse-flowing double-ribbon structure, the mixing process is gentle, achieving bidirectional convection and uniform mixing without damaging the glutinous rice flour particle shape. This avoids clumping and gelatinization caused by over-mixing.
Non-stick and Easy to Clean: Optimized for the sticky nature of glutinous rice flour, the U-shaped cylinder and ribbon gap are precisely controlled, and the smooth inner wall prevents material buildup, resulting in extremely low residue after mixing.
Variable Frequency Adjustable: Equipped with a variable frequency speed control motor, the mixing speed can be flexibly adjusted, suitable for homogenizing pure glutinous rice flour and blending glutinous rice flour with sugar/starch/additives.
Sealed and Dustproof: Employing food-grade sealing components, the entire unit is highly airtight, preventing glutinous rice flour dust from escaping and ensuring a clean workshop environment.
The Glutinous Rice Flour Ribbon Mixer uses a horizontal double-ribbon counter-current mixing method. After startup, the variable frequency motor drives the through shaft to rotate, causing the two layers of ribbons inside the drum to rotate synchronously in opposite directions. The outer ribbons collect glutinous rice flour and auxiliary materials from both ends of the drum towards the center, while the inner ribbons push the materials in the center towards both ends, creating bidirectional convection and gentle shearing to complete the mixing of glutinous rice flour and other materials.
| Model | LHY-0.25 | LHY-0.5 | LHY-1 | LHY-1.5 | LHY-2 | LHY-3 | LHY-4 | LHY-6 | LHY-8 | LHY-10 |
| One-time mixing (kg) | 100-150 | 200-300 | 400-600 | 600-900 | 800-1000 | 1200-1800 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 |
| Mixing time (min) | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 |
| Mixing speed (r/min) | 60 | 55 | 45 | 40 | 35 | 25 | 25 | 20 | 15 | 15 |
| Motor power (kw) | 3-5.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
| Weight (kg) | 500 | 900 | 1800 | 2500 | 3200 | 4100 | 5100 | 6300 | 7500 |
A large traditional pastry company customized a 2000L Glutinous Rice Flour Ribbon Mixer to improve the mixing uniformity of raw materials for products such as glutinous rice balls and rice cakes. The equipment is constructed entirely of 304 stainless steel and features a double-layer counter-directional spiral ribbon structure, enabling precise mixing of glutinous rice flour, powdered sugar, and starch. The mixing uniformity has been improved from 85% to 99.5%, with a single batch capacity of 1.5 tons and mixing time reduced to 8 minutes per batch. Through a supporting vacuum feeding system and PLC control, the entire process of feeding, mixing, and discharging is fully automated.
Yes, we have optimized the structure specifically for powder-to-liquid mixing, fully meeting the mixing requirements of glutinous rice flour and slurry. After the equipment starts, the double-layer counter-directional spiral ribbon, through bidirectional convection and gentle shearing, allows the glutinous rice flour and slurry to fully blend. The mixing process is gentle, preventing lumps and leaving no powder residue, quickly mixing the powder and slurry into a uniform paste. The speed can also be adjusted via frequency conversion to adapt to different slurry ratios.
Our Glutinous Rice Flour Ribbon Mixer is priced between $1,000.00 and $7,900.00, with prices fluctuating depending on the product material, model, and customized features. These include upgrades such as 316L stainless steel construction, the addition of a variable frequency speed control system, optimized powder-liquid mixing structure, and fully automatic loading and unloading. More customization options result in a higher-end configuration and a corresponding price adjustment. As a direct manufacturer, we eliminate intermediaries, ensuring food-grade materials and process standards while strictly controlling costs. All equipment includes a warranty, installation guidance, and after-sales spare parts, guaranteeing ongoing maintenance support.
Dahan Machinery possesses a mature Glutinous Rice Flour Ribbon Mixer production line and customized production capabilities. All equipment undergoes multiple quality tests and meets food processing hygiene standards. As a direct supplier from the manufacturer, eliminating middlemen and markups, our prices are tailored to production needs. We can customize quotes based on capacity and configuration, and provide one-stop services including pre-shipment testing, technical guidance, and after-sales warranty. This allows customers to purchase suitable glutinous rice flour ribbon mixers at a high cost-performance ratio.
The Glutinous Rice Flour Ribbon Mixer is designed to address the sticky and clumping characteristics of glutinous rice flour, ensuring even mixing without damaging the flour particles. Its food-grade materials and sealed structure combine hygiene and practicality. It is also suitable for powder-liquid mixing and customized configurations.
