Ribbon Mixer For Cattle And Sheep Feed is primarily used to uniformly mix various cattle and sheep feed ingredients, adapting to the feeding needs of cattle and sheep at different growth stages. It can handle various forms of raw materials. The ribbon design solves the problem of uneven mixing in traditional mixing methods, providing a stable and qualified basic feed for cattle and sheep farming. The product can be customized in terms of height, material, and power to integrate with upstream and downstream equipment, easily adapting to existing production lines. A single mixing time of 5-15 minutes allows for rapid mixing of cattle and sheep feed.
The core function of the Ribbon Mixer for Cattle and Sheep Feed is to improve the overall quality of cattle and sheep feed, ensuring a balanced distribution of various nutrients. This allows each animal to ingest sufficient protein, vitamins, minerals, and crude fiber, preventing growth differences and abnormal feed intake caused by uneven nutrient distribution. Simultaneously, uniform mixing maximizes the utilization of various feed ingredients, reducing waste and lowering farming costs.
The Ribbon Mixer for Cattle and Sheep Feed utilizes the convection motion of inner and outer double-layered ribbons to quickly and evenly mix powdered raw materials such as corn and soybean meal with fibrous materials such as hay powder and straw, and liquids such as molasses. We offer both vertical and horizontal models to suit customers in various production scenarios.

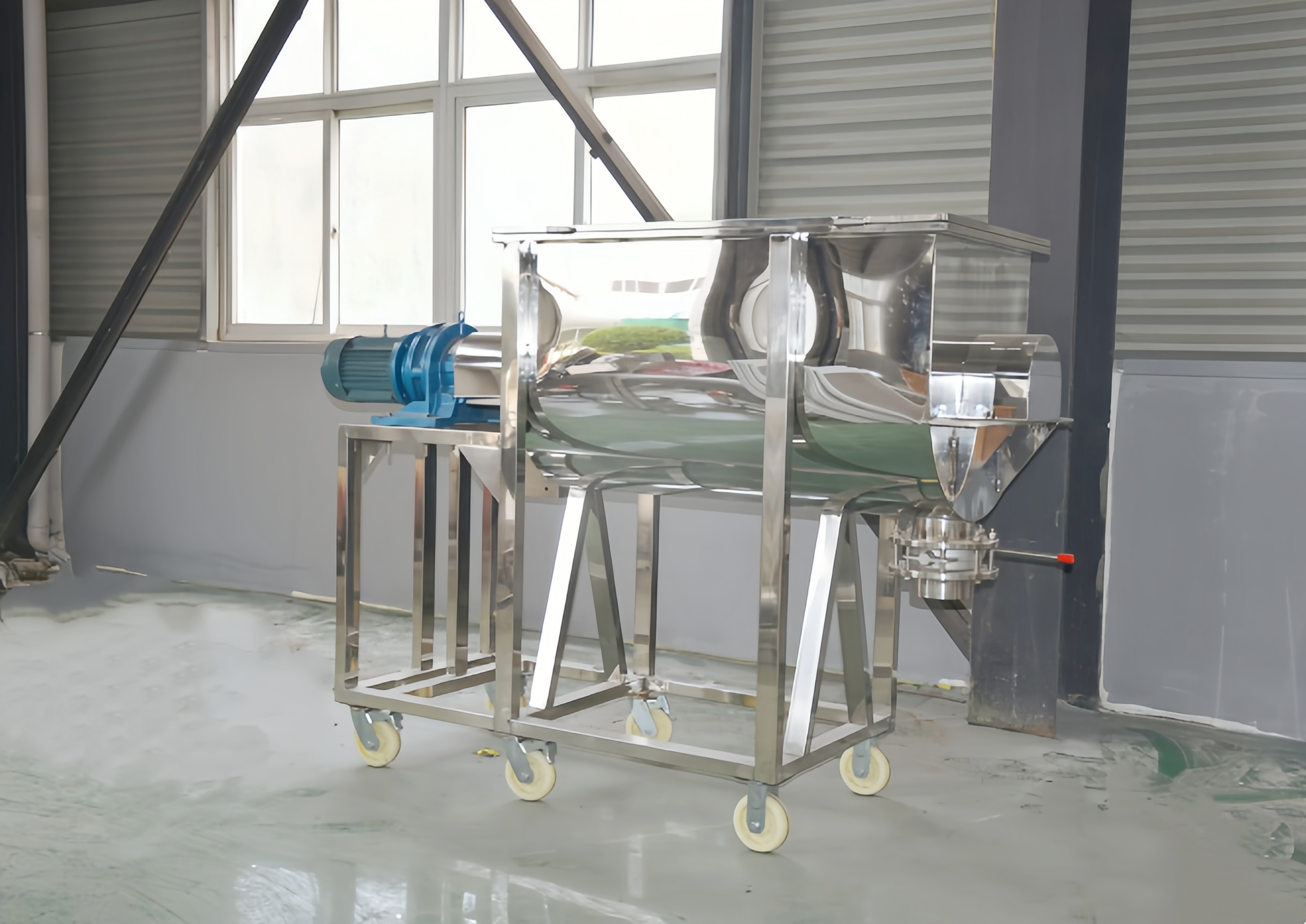

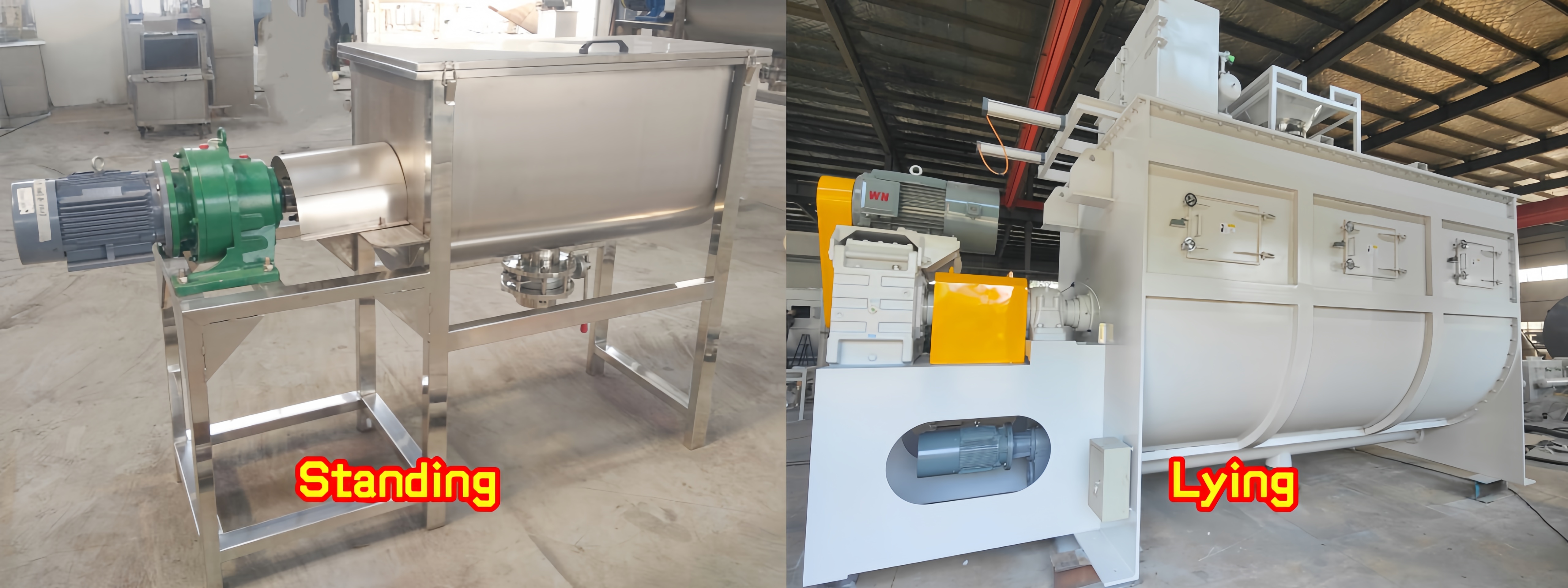

Vertical Ribbon Mixer for Cattle and Sheep Feed: Its key features include sturdy support legs, a vertical structure, and a small footprint, making it suitable for small to medium-sized ranches and feed processing plants with limited space. The outriggers are welded from thickened steel, providing strong load-bearing capacity and ensuring stable mounting to the ground, preventing shaking during operation. Rollers can also be installed at the bottom for easy repositioning and multi-directional mixing.
Horizontal Cattle and Sheep Feed Ribbon Mixer: This machine features a horizontal design without additional outriggers, allowing for direct ground installation and making it suitable for large-scale ranches and feed processing plants. Its elongated design provides a larger mixing chamber volume, enabling the processing of large quantities of feed ingredients and continuous mixing operations, reducing the frequency of downtime for refeeding.
The Ribbon Mixer for Cattle and Sheep Feed mainly consists of a mixing chamber, ribbon mixing components, a transmission system, an inlet, an outlet, and a control system. The mixing chamber features a U-shaped design with smooth, corner-free inner walls, preventing material residue and accumulation while minimizing wear on the chamber. The ribbon mixing assembly consists of inner and outer layers, made of high-strength steel, with a precisely designed spiral curvature that conforms to the inner wall of the chamber. The transmission system comprises a motor and a reducer, ensuring stable connection and smooth ribbon rotation. The widened feed inlet facilitates the rapid addition of various raw materials, while the discharge port is equipped with a sealing valve to control the discharge speed. The control system is simple to operate.

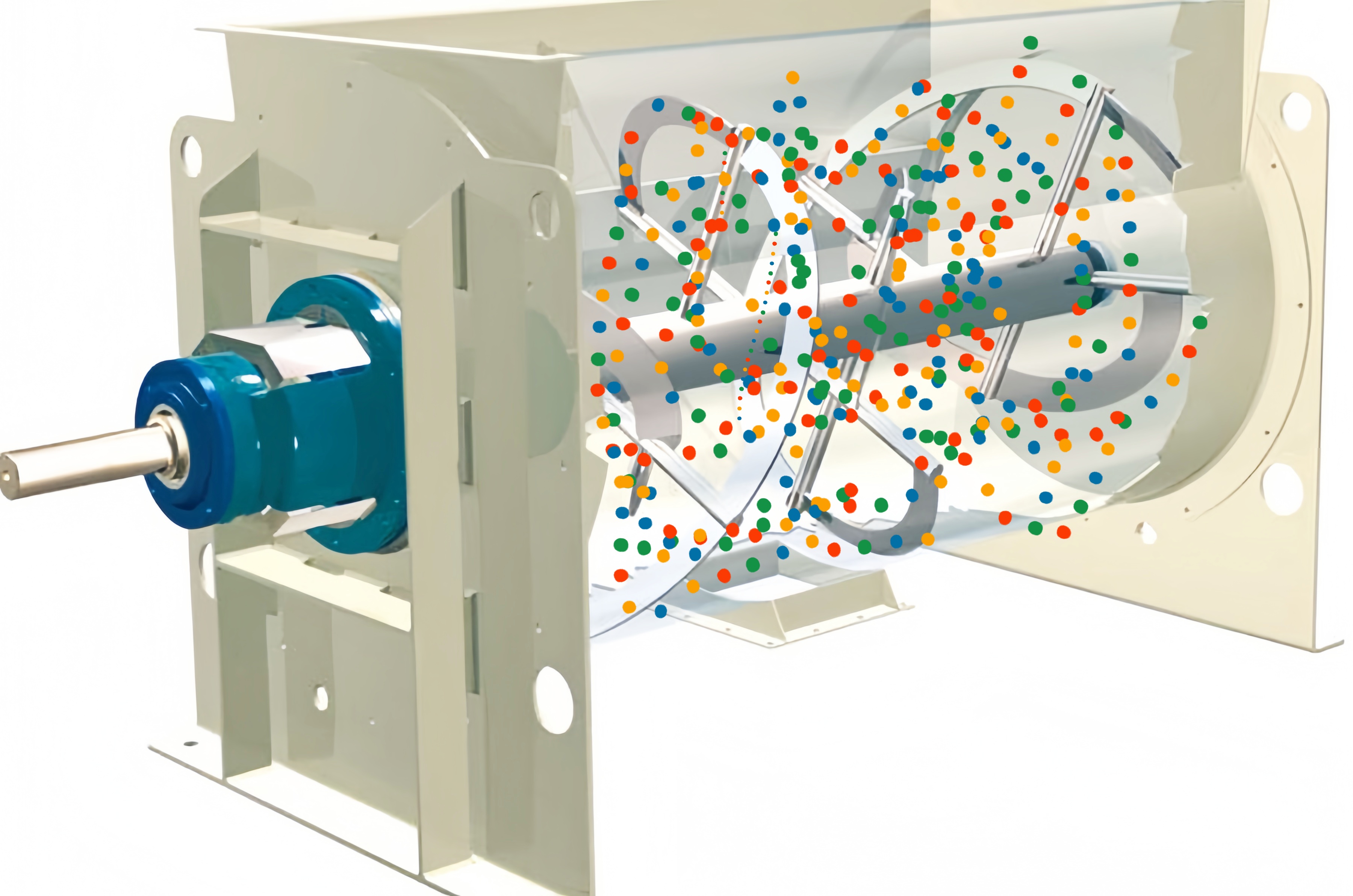

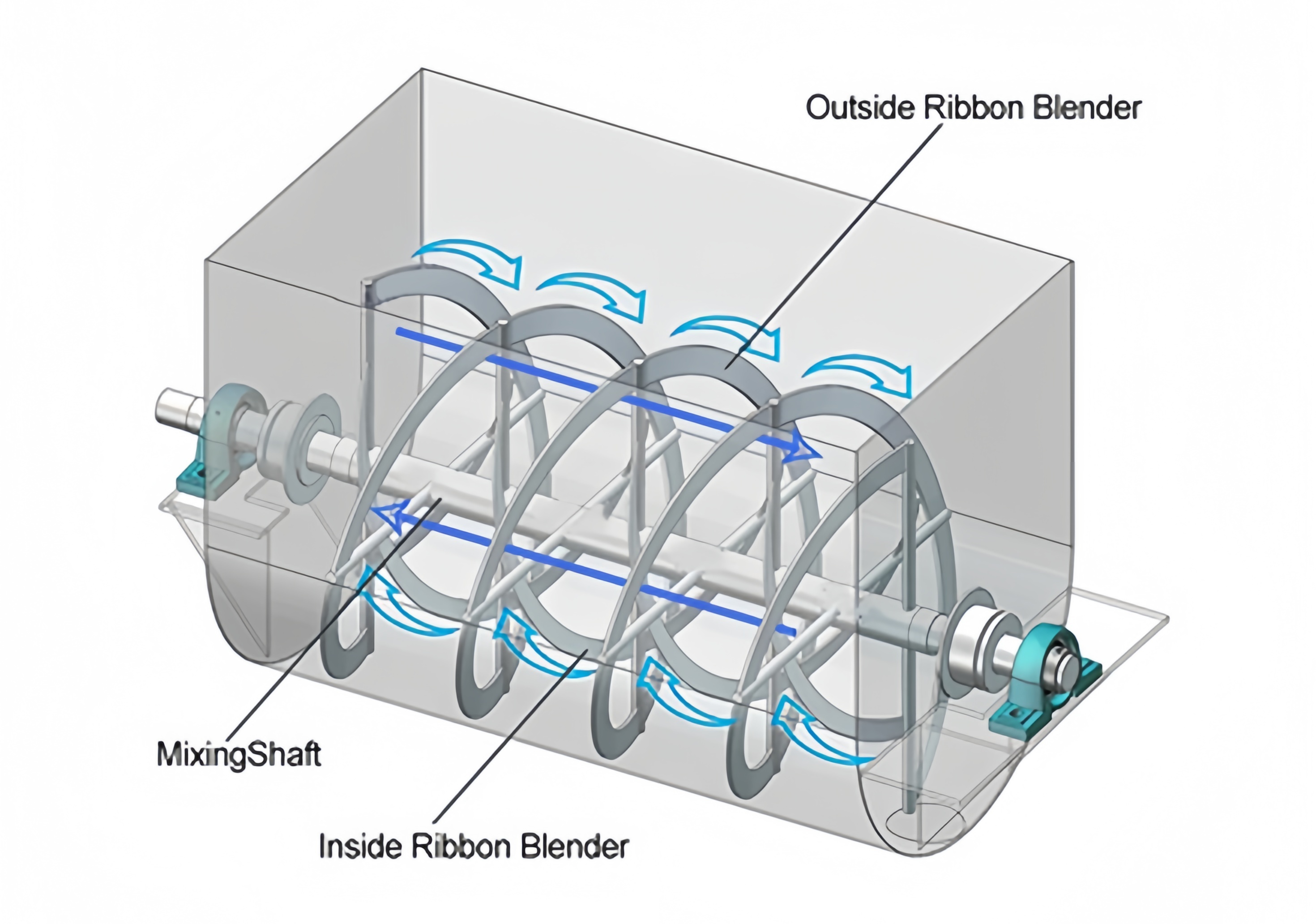

The Ribbon Mixer for Cattle and Sheep Feed operates based on the bidirectional rotation of the ribbon, which moves the raw materials. The motor drives the main shaft via the reducer, with the inner and outer ribbons rotating in opposite directions. The outer ribbon gathers feed from both sides of the chamber towards the center, while the inner ribbon transports feed from the center to both sides, creating a convective circulation of the raw materials. Simultaneously, the rotating ribbon shears and tumbles the raw materials, causing materials of different shapes and specific gravities to interweave and penetrate, breaking up clumps and ensuring uniform mixing.
| Model | LHY-0.25 | LHY-0.5 | LHY-1 | LHY-1.5 | LHY-2 | LHY-3 | LHY-4 | LHY-6 | LHY-8 | LHY-10 |
| One-time mixing (kg) | 100-150 | 200-300 | 400-600 | 600-900 | 800-1000 | 1200-1800 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 |
| Mixing time (min) | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 |
| Mixing speed (r/min) | 60 | 55 | 45 | 40 | 35 | 25 | 25 | 20 | 15 | 15 |
| Motor power (kw) | 3-5.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
| Weight (kg) | 500 | 900 | 1800 | 2500 | 3200 | 4100 | 5100 | 6300 | 7500 |
The Ribbon Mixer for Cattle and Sheep Feed ensures a smooth mixing process with no dead zones, resulting in more even distribution of raw materials and adaptability to various feed forms. Flexible model selection, durable and easy-to-operate structure, clean output with minimal residue, meeting the needs of cattle and sheep farming and feed processing at different scales.
High mixing uniformity: Effectively solves the problems of raw material stratification and uneven mixing in traditional mixing methods, ensuring consistent nutrient distribution in the feed and adapting to the nutritional needs of cattle and sheep at different growth stages.
Stable operation: Employs high-quality transmission components and wear-resistant screw ribbons, resulting in a low failure rate, long service life, and reduced equipment maintenance costs.
Easy operation: The control system is simple and easy to understand, requiring no professional technicians; farmers can quickly learn to operate it.
Low residue: The U-shaped cavity and smooth inner wall design, combined with the rotating screw ribbon, ensures no dead zones during output, reducing raw material waste. Flexible Installation: Both vertical and horizontal models are available to suit different farm sizes and processing needs, adapting to various scales of farming operations.
The Ribbon Mixer for Cattle and Sheep Feed is a highly versatile device capable of mixing various forms and types of feed ingredients to meet the diverse nutritional needs of ruminants.
| Category | Specific Materials | Remarks |
| Basic Energy | Protein Raw Materials | Corn, sorghum, oats, barley, wheat, soybean meal, rapeseed meal, cottonseed meal, wheat bran, etc. | Constitutes the main body of feed, providing primary energy and protein. |
| Roughage | Fiber Materials | Grass meal, hay hay, straw powder, and by-products | Especially important for cattle and sheep, forming an essential component of their daily diet. |
| Micronutrient Additives | Premixes | Vitamins, minerals, trace elements, enzymes, and pharmaceutical additives, etc. | Although used in small quantities, they are crucial for animal health and require extremely high mixing uniformity. |
| Liquid components | Melamine, oils, water, etc. | Used to increase feed energy density, improve palatability, and reduce dust. A liquid additive system is usually optional. |
Dahan Vibration Machinery is a one-stop manufacturer of Ribbon Mixer for Cattle and Sheep Feed, integrating R&D, production, and sales. Direct sales eliminate middlemen. With years of industry experience, we focus on optimizing and upgrading ribbon mixers, creating highly adaptable equipment tailored to modern farming needs. Using high-quality steel and stainless steel, we strictly control every production step to ensure equipment quality meets standards. We offer both vertical and horizontal mixing equipment to suit different customer needs, based on their farm size, site dimensions, and feed formulation. Customization is also supported, including customized selection and drawing services. Our products are used by major ranches and feed processing plants worldwide. Our reliable quality and attentive service have earned the recognition and trust of a wide range of livestock customers.
What materials are available?
We offer carbon steel, 304 stainless steel, and 316 stainless steel. Carbon steel offers high cost-effectiveness and is suitable for mixing general dry feeds; 304 stainless steel is corrosion-resistant and easy to clean, suitable for conventional feed processing; 316 stainless steel offers even stronger corrosion resistance and is suitable for mixing special raw materials.
Can it mix wet feed?
Yes, the ribbon mixing component effectively prevents wet feed from clumping, ensuring no sticking or residue during mixing, meeting the various needs of wet feed feeding in cattle and sheep farming.
What is the mixing capacity per batch?
The mixing capacity can be flexibly adapted to different needs. Standard sizes include 100 kg, 300 kg, 600 kg, and 1000 kg, allowing for flexible selection based on farm size and processing volume.
Which countries can I export to?
Our Ribbon Mixer for Cattle and Sheep Feed supports global export, covering multiple countries and regions across all continents. Regardless of your location, we provide comprehensive export customs clearance and logistics services to ensure safe and timely delivery of your equipment.
How many days does it take to ship?
The shipping time varies depending on the model. Standard models are in stock and can be shipped within 3-5 days after payment. Customized models require adjustments to production based on customer needs, and the shipping time is 7-15 days.
