Turmeric Powder High Speed Mixer is a mixing machine designed for processing spices such as turmeric powder, curry powder, and five-spice powder. It ensures uniform mixing of multiple spices and raw material pretreatment. The machine body and mixing chamber are made of stainless steel, ensuring no dead corners and easy cleaning, meeting the hygiene requirements of spice processing. With the strong centrifugal and convective forces generated by the high-speed rotating blades, it can quickly break up turmeric powder clumps and achieve multi-component spice mixing. The mixing capacity is 50-500kg per batch, with a mixing time of only 3-8 minutes. The rotation speed can be adjusted to suit different spice characteristics, balancing mixing uniformity and preserving the flavor of the raw materials. It is a core component of large-scale spice processing.

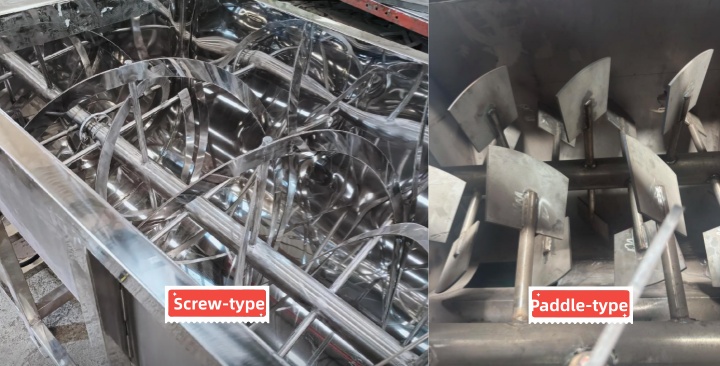

Our factory produces two main types of Turmeric Powder High Speed Mixers: ribbon type and paddle type. The ribbon type uses double-layer counter-rotating ribbons to create a convective vortex, suitable for large-scale continuous production; the paddle type uses dual-axis counter-rotating inclined paddles to achieve weightless mixing, gently handling materials and preventing turmeric powder particle breakage and loss of heat-sensitive components.
Ribbon-type Turmeric Powder High Speed Mixer: Uses a U-shaped long cylinder body with double or triple-layer ribbon blades. The outer spiral collects the turmeric powder from both sides towards the center, while the inner spiral transports the material from the center to the sides, creating a multi-directional vortex to accelerate mixing. Suitable for continuous production of large quantities of turmeric powder.
Paddle-type Turmeric Powder High Speed Mixer: Adapts to the processing needs of turmeric powder with a gentle mixing method. The core is a special paddle inclined at 45°-60° that generates three-dimensional motion. The dual-axis counter-rotating paddles gently scoop, lift, and tumble the turmeric powder, creating a triple effect of convection, shearing, and diffusion. In a weightless state, it eliminates the influence of density differences, suitable for multi-component production scenarios such as compound seasoning powders.
The Turmeric Powder High Speed Mixer is custom-designed for turmeric powder, taking into account its characteristics of being prone to clumping, heat-sensitive, and susceptible to contamination. It uses food-grade stainless steel and achieves high mixing uniformity through bidirectional convection or weightless mixing structures. Anti-stick coating reduces residue, temperature control protects curcumin, and it is adaptable to diverse configurations.
Fast mixing: Using high-speed shearing and three-dimensional convection dual-mode technology, it achieves uniform mixing in 3-5 minutes, increasing efficiency by 60% compared to traditional equipment.
Reduced loss and contamination: Made of stainless steel, the inner wall is polished to be smooth and without dead ends. Combined with a wear-resistant and anti-stick coating, it effectively prevents turmeric powder from sticking to the walls and avoids metal impurity contamination.
Multi-functional compatibility: It can not only mix turmeric powder alone but also mix turmeric powder with other seasoning powders and nutritional additives. It supports the spraying of small amounts of liquid, making it suitable for the production of compound seasonings, meal replacement powders, and other diverse products.
Anti-caking treatment: Different types of ribbon designs can break up powder agglomerates, and combined with jacketed temperature control, effectively control caking caused by humidity.
Customizable: Supports on-site non-standard customization. The cylinder volume and mixing speed can be adjusted according to customer production capacity requirements, and it can be equipped with dust removal and exhaust devices to perfectly integrate with other equipment for normal operation of the production line.
The structural design of the Turmeric Powder High Speed Mixer revolves around three core needs: anti-sticking, anti-contamination, and high uniformity. It consists of four main parts the power system, the mixing host, the control system, and auxiliary components.
Power system: Uses a variable frequency speed control motor + reducer combination. The motor and the host are connected by a sealed coupling, and a dust-proof sealing cover prevents turmeric powder dust from entering the transmission components and causing wear.
Mixing system: The ribbon type uses a double-layer or triple-layer ribbon mixing paddle. The outer ribbon pushes the material to the center of the cylinder, and the inner ribbon transports the material to both sides in the opposite direction, forming a bidirectional convective vortex; the paddle type uses a dual-axis reverse drive structure. The high-strength stainless steel smooth paddles, with a 45°-60° inclination design, gently lift and scatter the turmeric powder during rotation, creating a weightless mixing state.
Control System: Equipped with a PLC touch screen control system, allowing for setting parameters such as mixing time, rotation speed, and discharge delay, and supporting one-button start/stop and automated production.
The Turmeric Powder High Speed Mixer is driven by a dual power system, with a high-speed shearing rotor and a three-dimensional ribbon working in conjunction. Under centrifugal force, the turmeric powder rises along the cylinder wall, is evenly scattered back down by the top scattering plate, creating strong convection; at the same time, the shearing rotor generates high-frequency vortices, instantly breaking down powder agglomerates, allowing the turmeric powder and auxiliary materials to achieve molecular-level mixing within 3-5 minutes. After mixing is complete, the material is discharged from the discharge port.
| Model | LHY-0.25 | LHY-0.5 | LHY-1 | LHY-1.5 | LHY-2 | LHY-3 | LHY-4 | LHY-6 | LHY-8 | LHY-10 |
| One-time mixing (kg) | 100-150 | 200-300 | 400-600 | 600-900 | 800-1000 | 1200-1800 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 |
| Mixing time (min) | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 |
| Mixing speed (r/min) | 60 | 55 | 45 | 40 | 35 | 25 | 25 | 20 | 15 | 15 |
| Motor power (kw) | 3-5.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
| Weight (kg) | 500 | 900 | 1800 | 2500 | 3200 | 4100 | 5100 | 6300 | 7500 |
A compound spice customer, with an annual output of over 2000 tons of turmeric powder and compound seasoning powder, previously experienced problems with uneven mixing, excessive turmeric powder residue on the walls, and serious dust generation with traditional mixing equipment, resulting in significant color differences between product batches and high raw material losses. We customized a stainless steel ribbon-type Turmeric Powder High Speed Mixer for them, with a double-layer reverse ribbon structure to create a bidirectional convective vortex, completely eliminating mixing dead zones and significantly improving mixing uniformity. It also features PLC automatic control, shortening the single batch mixing time by 40%, and a quick-release structure for easy cleaning, meeting the needs of multi-variety switching.
The single mixing time of the Turmeric Powder High Speed Mixer is usually 3-8 minutes. The specific duration can be flexibly adjusted according to the material formula, batch size, and process requirements. For conventional formulas, the synergistic effect of high-speed shearing and the three-dimensional ribbon can achieve uniform mixing within 3-5 minutes; if the formula contains oil or easily agglomerating components, the time can be extended to 6-8 minutes. The specific mixing time needs to be calculated and set based on your production needs and output.

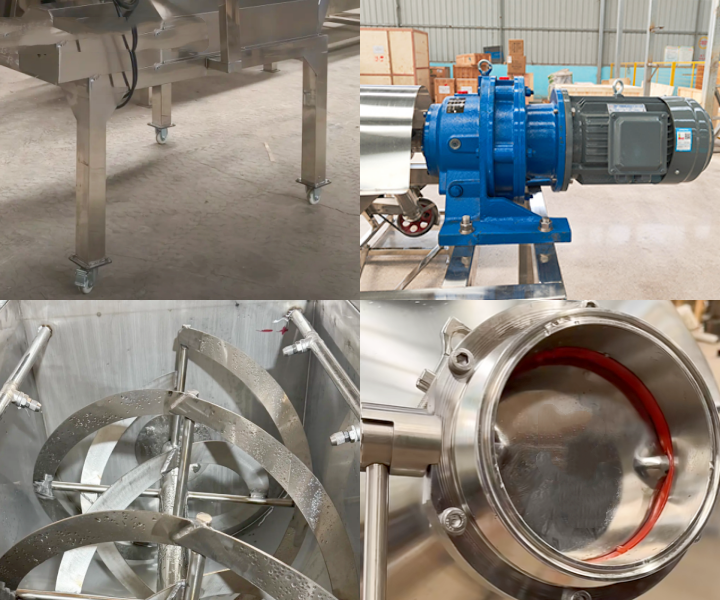

The Turmeric Powder High Speed Mixer offers various configurations, including mobile casters, spray design, explosion-proof motor, and discharge valve, allowing for customized production to meet your production needs and ensure the rapid and smooth operation of the entire production line.
Mobile Casters: Installed at the bottom of the device, made of wear-resistant polyurethane material, providing strong load-bearing capacity and quiet operation without scratching the workshop floor. For small and medium-sized enterprises that frequently need to change production areas or work with different upstream and downstream equipment, the mobile caster design eliminates the cumbersome process of fixed installation.
Spraying Design: For the compounding needs of turmeric powder and liquid additives, the equipment can be equipped with a precise spraying design. This system is equipped with multiple atomizing nozzles, evenly distributed at the top of the cylinder, which can atomize liquid additives into micron-sized droplets, ensuring full contact and mixing with the high-speed tumbling turmeric powder.
Explosion-proof Motor: For working conditions where turmeric powder is prone to dust generation and explosion risks during the mixing process, the equipment can be optionally equipped with an explosion-proof motor, coupled with variable frequency speed control, allowing for smooth speed adjustment according to material characteristics.
Discharge Valve: Various discharge valves can be selected according to production needs to meet different working conditions. The standard configuration uses an arc-shaped discharge valve, with the discharge port conforming to the curvature of the tank bottom, ensuring complete emptying of the turmeric powder without dead corners. For large-scale production scenarios requiring rapid discharge, a large-diameter pneumatic discharge valve can be selected.
The price of the Turmeric Powder High Speed Mixer manufactured by DaHan Machinery varies depending on equipment specifications, materials, configuration, and customization requirements, starting at $2,500, with significant price differences between different configurations. The basic model is suitable for small workshops and laboratories, using food-grade carbon steel and a simple mixing structure to meet the needs of small-batch turmeric powder mixing. Industrial-grade models use 304/316 stainless steel, are equipped with a ribbon/paddle precision mixing system, and feature variable frequency control and explosion-proof motors; the price increases with production capacity and functional upgrades. We are a direct manufacturer, eliminating middlemen, and also support customized components such as spray nozzles and sealed discharge valves. If you need a more detailed quote, please contact us and describe your requirements; we will recommend suitable models and provide a detailed price list.
The Turmeric Powder High Speed Mixer, with its targeted structural design and functional configuration, perfectly adapts to the characteristics of turmeric powder, such as its tendency to clump, heat sensitivity, and susceptibility to contamination. Whether using the efficient convection mixing of the ribbon type or the gentle weightless mixing of the paddle type, it ensures the uniformity and quality stability of the finished product.
