When it comes to dry powder mixing, uniformity is everything. Our V-Type Powder Mixer (also known as a V-Shaped Blender or V-Mixer) delivers high-precision homogeneous blending with minimal product degradation—making it the preferred choice for pharmaceutical, food, chemical, and cosmetic manufacturers worldwide.
Unlike traditional mixers that can damage fragile materials, the V-Type design uses a gravity-assisted tumbling action that gently folds materials from end to end. This ensures superior mixing quality while preserving particle integrity—critical for expensive or delicate ingredients.

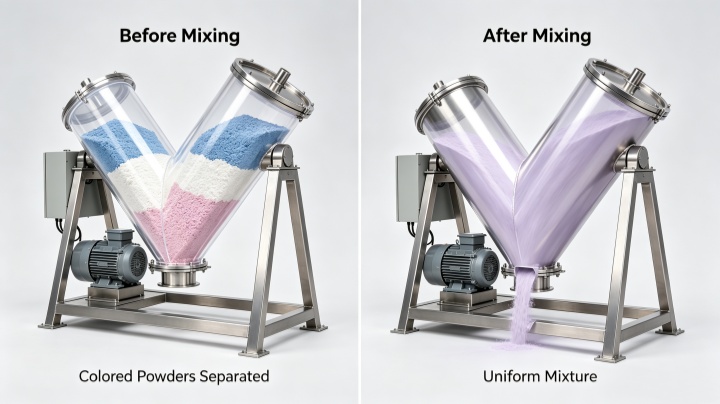

The V-Type mixer operates on a simple yet highly effective principle:

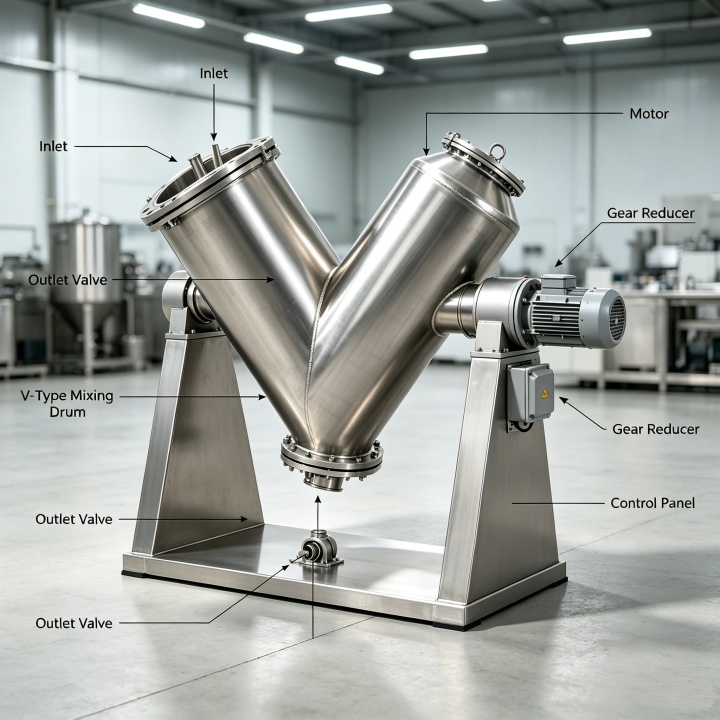

A motor and reducer drive the V-shaped barrel through a coupling
The barrel rotates continuously, moving materials up and down, back and forth
Materials flow smoothly within the V-shaped vessel, creating a cascading mixing action
The result is homogeneous blending in just 5–20 minutes, depending on material characteristics
Why this matters for you:
No dead zones—the V-shape eliminates unmixed pockets
Gentle on materials—ideal for easily broken or worn particles
Consistent batch-to-batch quality—controlled rotation ensures repeatability
Choose from our full range of models to match your production capacity:
| Model | Total Volume (L) | Working Capacity (L) | Working Capacity (kg) | Rotation Speed (rpm) | Power (kw) | Weight (kg) |
| CMPV-300 | 300 | 150 | 90 | 20 | 1.1 | 820 |
| CMPV-500 | 500 | 250 | 150 | 18 | 1.5 | 1250 |
| CMPV-1000 | 1000 | 500 | 300 | 15 | 3 | 1800 |
| CMPV-1500 | 1500 | 750 | 450 | 12 | 4 | 2100 |
| CMPV-2000 | 2000 | 1000 | 600 | 12 | 5.5 | 2450 |
| CMPV-3000 | 3000 | 1500 | 900 | 9 | 5.5 | 2980 |
| CMPV-5000 | 5000 | 2500 | 1500 | 8 | 7.5 | 3880 |
| CMPV-10000 | 10000 | 5000 | 3000 | 6 | 18.5 | 6000 |
Custom sizes up to 30,000L available upon request
Standard Features
Material: SUS304 or SUS316L stainless steel (contact parts)
Surface Finish: Polished or sandblasted to meet hygiene standards
Discharge Valve: Manual butterfly valve (standard)
Power Supply: 220V/50Hz single phase or 380V/50Hz 3 phase
Rotation: Fixed speed standard, variable speed optional
Optional Customizations
Explosion-proof motors & controls for hazardous environments
Heating/cooling jackets for temperature-sensitive materials
Customized feed inlets and manholes for specific production needs
Special wear-resistant or anti-corrosion materials for abrasive products
GMP-compliant designs for pharmaceutical application
CE, ISO, and GOST certifications available for international compliance

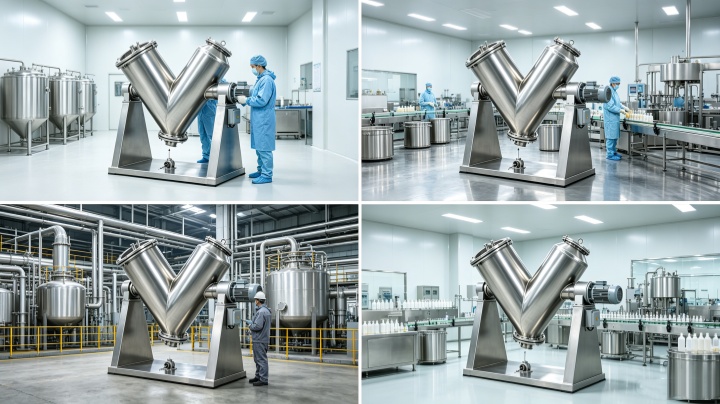

Our V-Type Powder Mixer is trusted across multiple industries:
| Industry | Applications |
| Pharmaceutical | API blending, tablet granulation, dry powder formulations |
| Food | Spice blending, nutritional powders, baking ingredients |
| Chemical | Detergent powders, fertilizer mixes, pigment blending |
| Cosmetic | Face powder, eyeshadow, talc-based products |
| Agricultural | Pesticide powders, seed treatments, feed additives |
| Battery | Cathode/anode powder mixing for lithium-ion batteries |
Ideal for blending:
Dry powders with good fluidity
Materials with minimal particle size differences
Fragile, easily broken, or easily worn materials
Fine powders, block materials, and materials with some moisture content

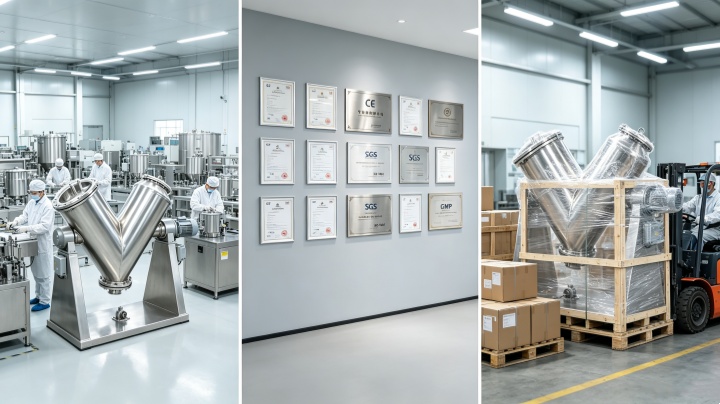

Quality Assurance
11+ years of export experience in powder processing equipment
SGS/BV-audited manufacturing facility
CE, SGS, and GMP certifications for global compliance
After-Sales Support
1-year warranty on all components
Online technical support and video guidance
Spare parts availability for the lifetime of the machine
Engineering support for customized requirements
Competitive Advantages
Factory-direct pricing—no middleman markups
Fast delivery from our Shanghai warehouse
Custom engineering for unique production requirements
Free consultation to match the right model to your application
To ensure we recommend the perfect V-Type Mixer for your application, please provide us with:
Material name (what are you mixing?)
Particle size (mesh size, mm, or micron range)
Bulk density (kg/m³ or g/cc)
Batch size (how many kgs per batch?)
With this information, our engineering team will recommend the optimal capacity, speed, and customization options for your specific process.
Q: What is the mixing time for a V-Type Powder Mixer?
A: Typically 5–20 minutes per batch, depending on material fluidity and batch size.
Q: Can this mixer handle materials with moisture?
A: Yes, the V-Type design is suitable for materials with certain moisture content, but we recommend confirming your specific material properties with our engineering team.
Q: What power supply options are available?
A: We offer both single-phase (220V) and three-phase (380V) options, with custom voltages available upon request.
Q: Is this machine GMP-compliant?
A: Yes, we offer GMP-compliant designs for pharmaceutical applications with polished surfaces and sanitary construction.
Q: What's the difference between a V-Type mixer and a Ribbon Blender?
A: V-Type mixers use gentle, gravity-based tumbling for fragile materials, while ribbon blenders use aggressive mechanical agitation. Choose V-Type for particle integrity; choose ribbon blenders for heavier, more robust materials.
