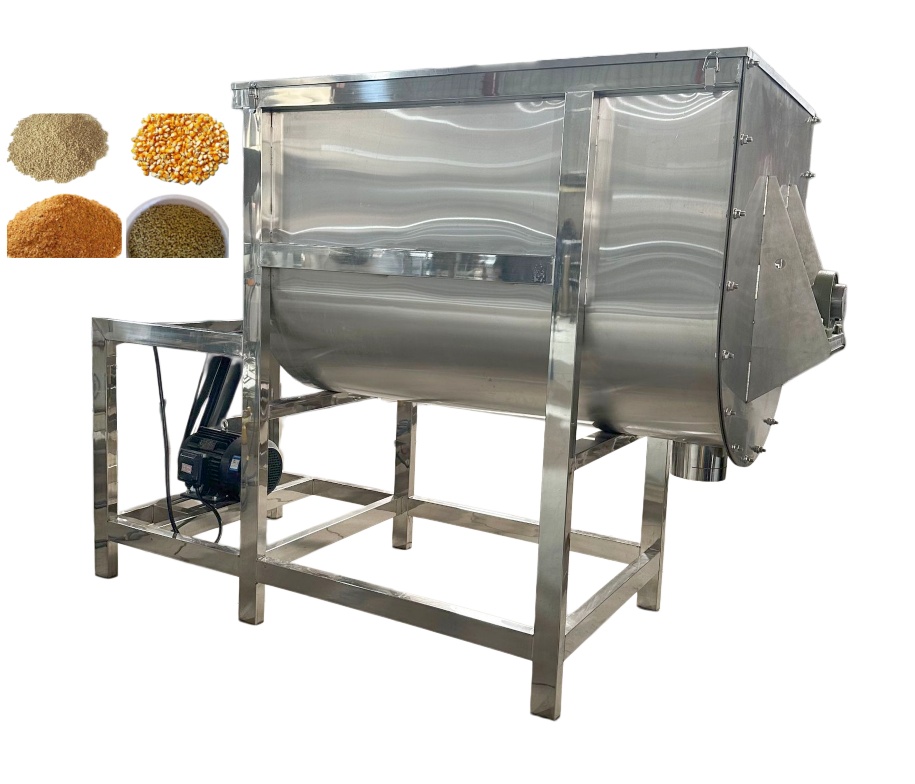

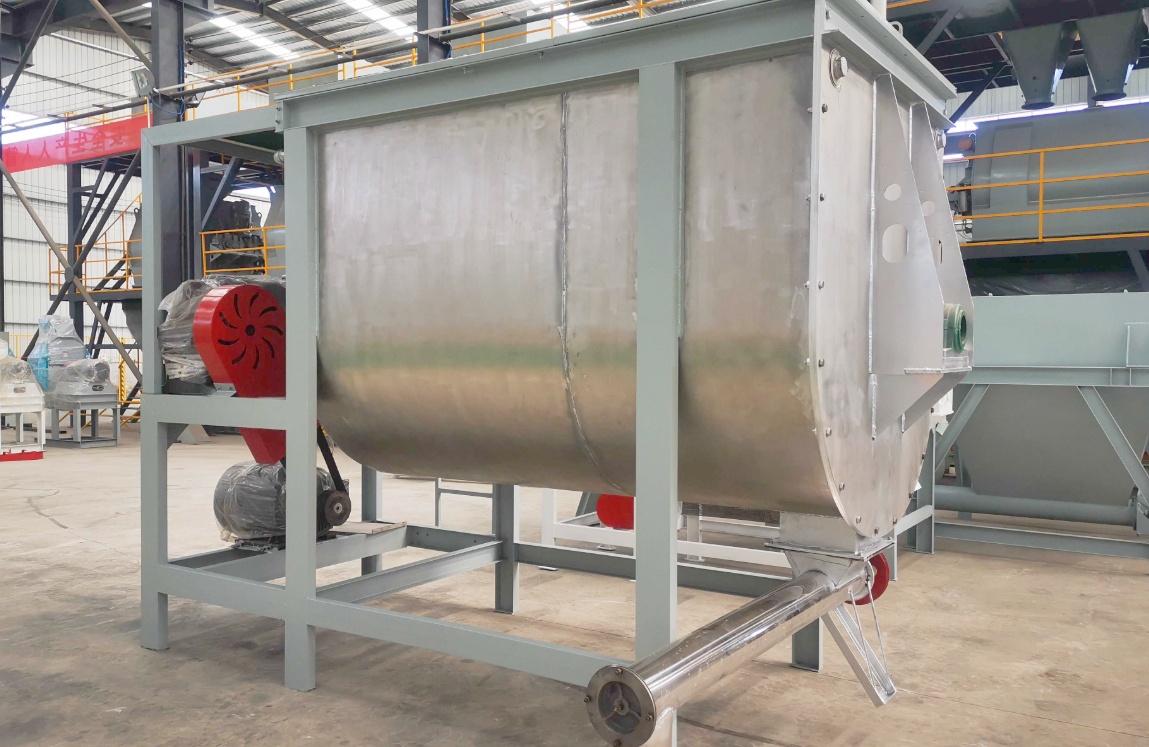

Sugar Powder Stainless Steel Ribbon Mixer is a horizontal mixer made of stainless steel with a built-in double-layer ribbon mixing device. It is used for the uniform mixing of sugar powder and various powdered materials. The inner and outer ribbons rotate in a specific direction, creating a convection circulation of materials within the drum, achieving rapid and uniform mixing. The entire machine is made of 304 or 316 stainless steel, meeting food-grade hygiene standards. The smooth inner wall and rounded corners prevent powder accumulation, making cleaning easy and effectively preventing material contamination. Customization is available to meet specific mixing needs and scenarios.
Sugar powder, as a material with extremely high fineness and flowability between powder and granules, has special requirements in mixing. A stainless steel ribbon mixer is the perfect choice to meet these requirements. Stainless steel is corrosion-resistant and rust-free, and the inner wall of the drum is precision polished, with no easily detachable parts such as screws, effectively preventing material contamination and meeting the standards of food and pharmaceutical production. Secondly, powdered sugar is prone to absorbing moisture and clumping, requiring a gentle and uniform mixing process.
The ribbon mixer, through the convection circulation of the inner and outer ribbons, can mix materials evenly in a short time, avoiding the overheating caused by intense friction that occurs with high-speed mixing, thus preventing the risk of powdered sugar melting or spoilage. The fully enclosed design of this equipment effectively controls dust leakage, improving the operating environment in the production workshop and reducing material loss. Finally, it has wide applicability, not only mixing powders but also accommodating the mixing needs of adding small amounts of liquid, flexibly handling various formulations.

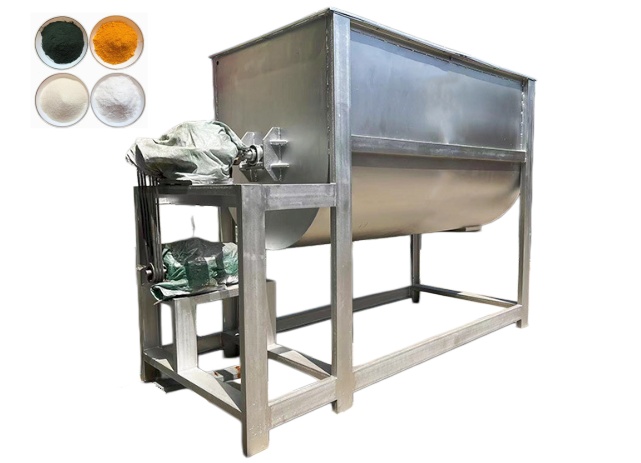

This sugar powder mixer can quickly break up clumps of sugar powder, milk powder, and starch, and also rapidly mix various dry powders, handling both granular materials and pastes. It's a multi-functional machine, flexibly handling different materials such as salt, spices, and additives, easily meeting diverse production needs.
Powder-to-Powder Mixing: This is its core function. Besides sugar powder, it can efficiently mix various dry powder materials, such as salt, monosodium glutamate, ginger powder, fennel powder, nut powder, milk powder, and starch.
Handling Sticky or Pasty Materials: Some designs can handle sticky or easily agglomerated powders, and can also process pastes formed by mixing powders with a small amount of liquid.
Solid-Liquid Mixing: Some models can mix powders with liquids. For example, spraying liquid additives into powders, or mixing liquid ingredients such as starch syrups.
Granular Materials: In addition to powders, it can also handle granular and crystalline materials, such as certain chemical raw materials.
Our Sugar Powder Stainless Steel Ribbon Mixer's core advantages are high-precision mixing and gentle physical action. The double-layer ribbon design ensures no dead zones in material convection, achieving a uniformity of over 99%; the fully enclosed stainless steel structure prevents contamination, is easy to clean and maintain, and is an ideal choice for improving production capacity and product quality.
Seamless Mixing:The unique double-layer spiral design pushes material from both ends towards the center, while the inner spiral pushes it from the center towards both ends. This motion ensures extremely high mixing uniformity in a short time, even for trace amounts of added ingredients.
Gentle and Non-Abrasive:For materials sensitive to temperature and shear force, such as powdered sugar, the spiral rotation is relatively gentle, preventing excessive grinding or abrasion of particles. This is especially suitable for mixing powdered sugar that requires maintaining its crystalline form.
Rapid Discharge:The bottom of the drum typically features a pneumatic or manual large-opening discharge structure, allowing for rapid discharge with minimal residue inside the drum. This helps avoid material waste and shortens cleaning time between batches.
Easy Cleaning:The smooth stainless steel surface, combined with a removable lid and inspection door, makes the interior of the equipment easy to clean and inspect, effectively preventing cross-contamination between different materials.

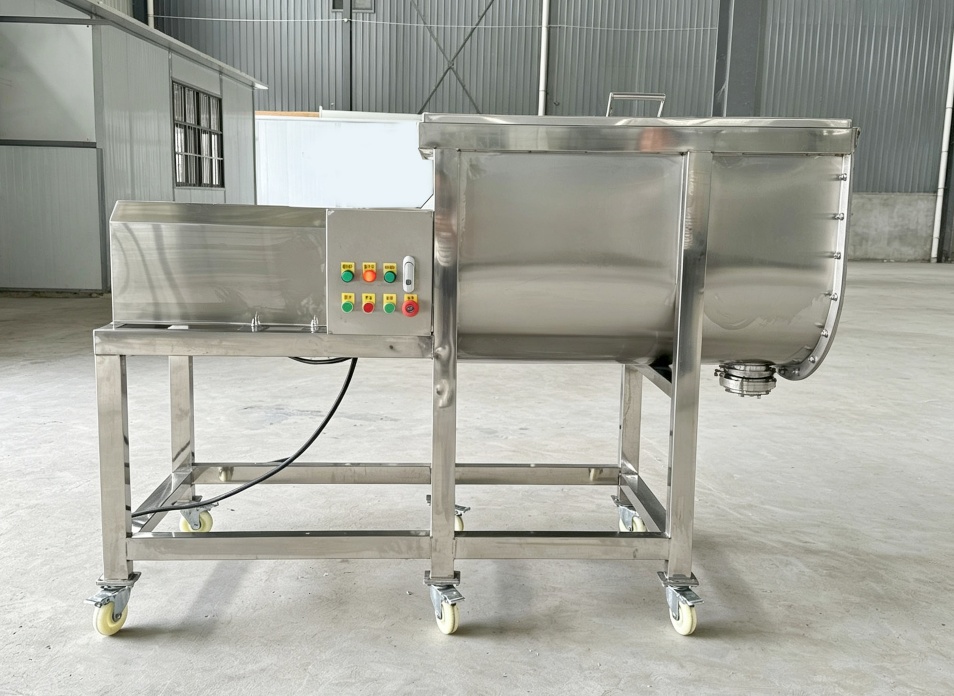

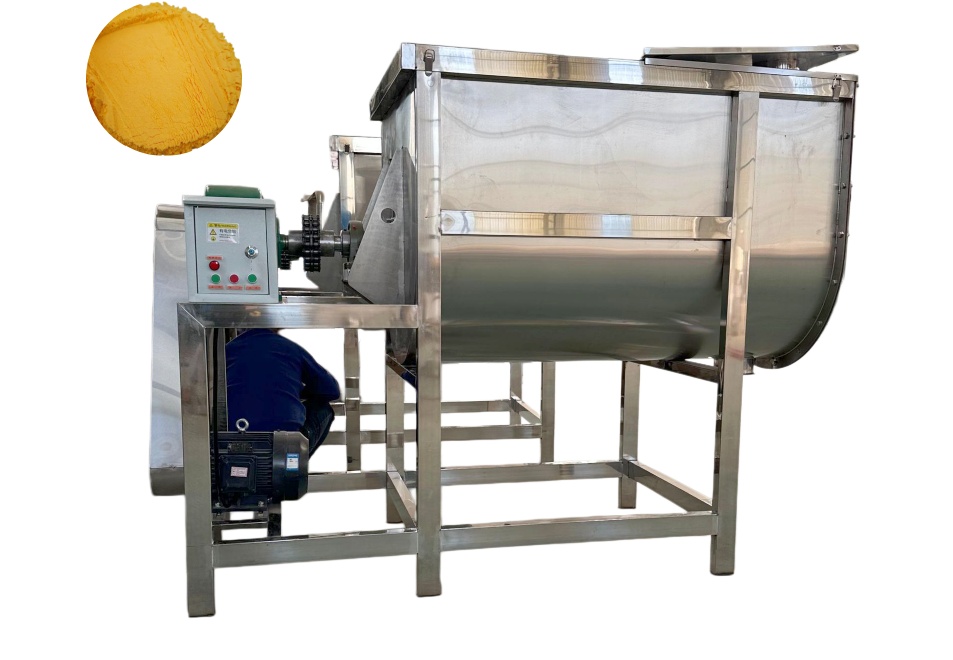

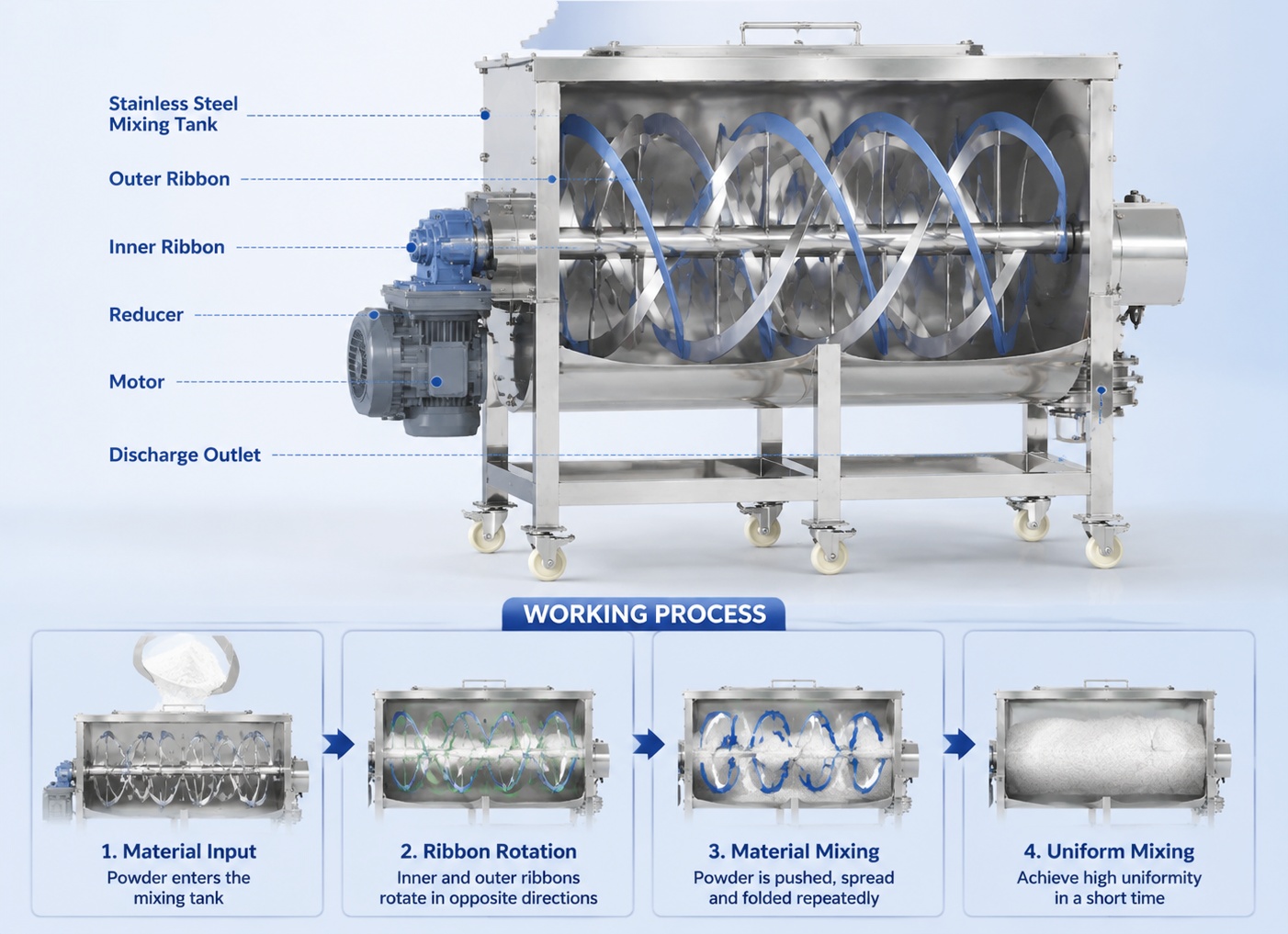

The stainless steel ribbon mixer for sugar powder mainly consists of a U-shaped horizontal cylinder, double-layer spiral mixing blades, a drive shaft, a geared motor, and a discharge mechanism. During operation, the motor drives the main shaft, causing the double-layer spiral ribbon to rotate uniformly within the cylinder. The outer spiral ribbon pushes material near the cylinder wall from both ends towards the center, while the inner spiral ribbon conveys material from the center to both ends, thus creating continuous, cyclical convection motion in the axial and radial directions of the cylinder. Simultaneously, material particles rise to a certain height with the rotating ribbon and then fall due to gravity, generating shearing and diffusion effects. The superposition of these three motions allows for rapid and uniform distribution of sugar powder and various auxiliary materials within the enclosed cylinder, typically completing a batch of high-precision mixing within 8 to 20 minutes.
| Model | LHY-0.25 | LHY-0.5 | LHY-1 | LHY-1.5 | LHY-2 | LHY-3 | LHY-4 | LHY-6 | LHY-8 | LHY-10 |
| One-time mixing (kg) | 100-150 | 200-300 | 400-600 | 600-900 | 800-1000 | 1200-1800 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 |
| Mixing time (min) | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 |
| Mixing speed (r/min) | 60 | 55 | 45 | 40 | 35 | 25 | 25 | 20 | 15 | 15 |
| Motor power (kw) | 3-5.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
| Weight (kg) | 500 | 900 | 1800 | 2500 | 3200 | 4100 | 5100 | 6300 | 7500 |

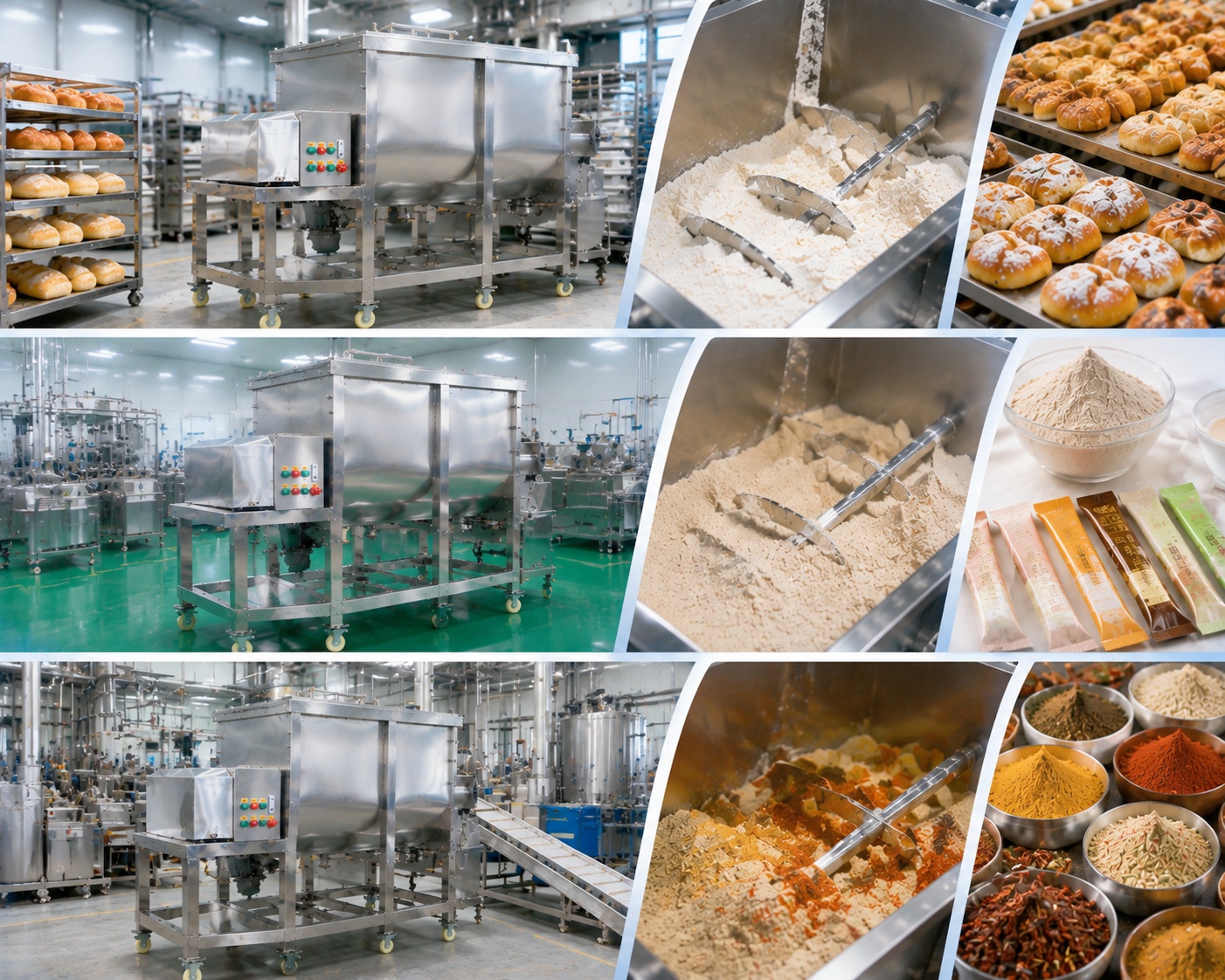

Our Sugar Powder Stainless Steel Ribbon Mixer is widely applicable to powder mixing needs in the food, pharmaceutical, and chemical industries. Whether it's baking premixes, solid beverage flavoring packets, or health powders and compound spices, the equipment can handle them efficiently.
Baking Premixes: Sugar powder is mixed with flour, starch, leavening agents, milk powder, and other ingredients to produce cake premixes, bread improvers, and biscuit powders, ensuring consistent flavor and texture in every finished product.
Seasonings: Used for mixing solid beverages such as milk tea powder, coffee creamer, fruit-flavored powder, and ice cream powder, as well as in the production of compound seasonings such as instant noodle seasoning packets, barbecue seasonings, and marinades, ensuring even distribution of spices, salt, sugar, and other components.
Pharmaceutical Powders: In a GMP-compliant workshop, sugar powder or sugar alcohols are mixed with vitamins, minerals, and traditional Chinese medicine extracts to produce powdered health supplements or pharmaceutical granules.
Our factory has been deeply involved in the powder mixing equipment field for many years, accumulating rich customer case studies in the food, pharmaceutical, and chemical industries. We deeply understand the process differences and production pain points of different customers, enabling us to accurately diagnose needs and provide customized mixing solutions from equipment selection to process optimization.
A large-scale baking food group: Primarily produces cake premixes and bread improvers, with a daily output exceeding 10 tons. Previously, they used vertical mixers, resulting in long mixing times and inconsistent batch-to-batch uniformity. After introducing our 500kg/batch stainless steel ribbon mixer, the double-layer ribbon convection mixing reduced the batch mixing time from 20 minutes to 6-8 minutes. The pneumatically operated large-door unloading system minimizes residue and effectively prevents cross-contamination between different formulas.
A solid beverage OEM manufacturer: This client manufactures milk tea powder and milk foam powder for several new tea beverage brands, requiring extremely high hygiene standards and a fine texture in the mixing process. Their materials include not only sugar powder but also non-dairy creamer, tea powder, and trace amounts of flavoring. We provided them with a large-capacity 1000kg/batch mixer. The inner wall of the drum is precision polished, eliminating dead corners and meeting food-grade hygiene standards.
A seasoning manufacturer specializing in compound barbecue seasonings and fried chicken coatings uses powdered sugar as a key ingredient, accounting for 30%-40%. Their challenge lies in the significant difference in specific gravity between powdered sugar and ingredients like chili powder, garlic powder, and salt, leading to easy separation after mixing. Our 100kg/batch equipment utilizes the efficient shearing and convection of a ribbon mixer to effectively solve the mixing problem of materials with vastly different specific gravities.
| Mixer Type | Sugar Powder | Mixing Uniformity | Gentle Mixing | Cleaning | Best Application |
| Ribbon Mixer | Excellent | High | Excellent | Easy | Industrial powder blending |
| V Blender | Good | High | Very gentle | Easy | Small/medium batches |
| Paddle Mixer | Good | High | Good | Easy | Powder and granule mixing |
| Double Cone Mixer | Good | High | Very gentle | Moderate | Sensitive powders |

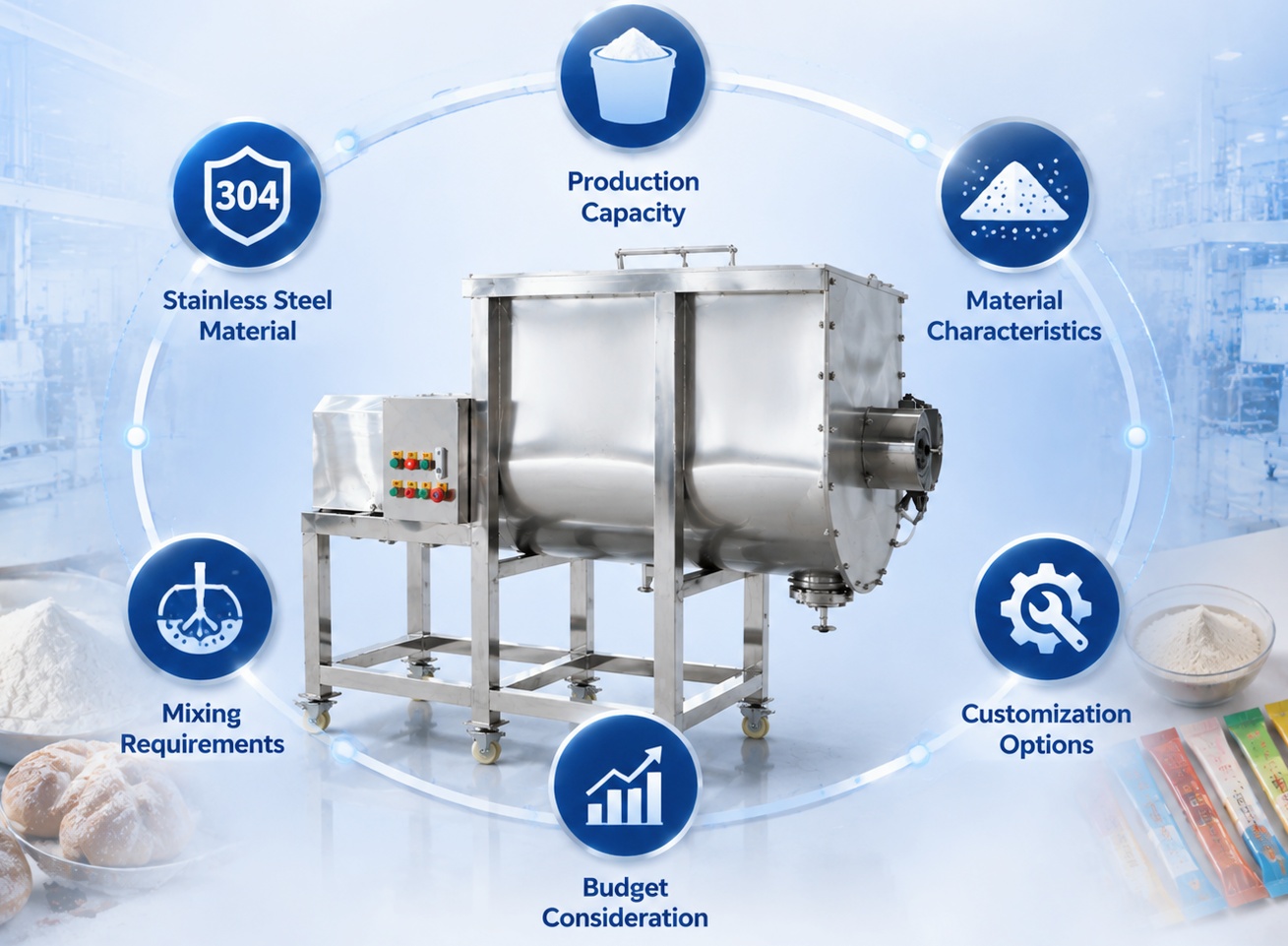

Batch Production Capacity: This is the primary consideration. The equipment model should be selected based on the total weight of materials to be mixed in a single batch.
| Equipment Specification | Recommended Batch Capacity | Applicable Production Scenarios |
| 100-150kg/batch | Approx. 80–120 kg/batch | R&D laboratories, small retail shops, small-batch customized production |
| 200-300kg/batch | Approx. 160–240 kg/batch | Medium-sized bakeries, seasoning workshops, pilot production lines |
| 400-600kg/batch | Approx. 320–480 kg/batch | Industrial large-scale production, e.g., main production equipment for large food factories |
| 800-1000kg/batch | Approx. 640–800 kg/batch | High-volume continuous production, with daily output reaching tens of tons |
Material Characteristics: Besides powdered sugar, what other ingredients do you need to mix? What are their specific gravity, fineness, and flowability? Do they contain oils or liquid additives? Standard ribbon mixers are suitable for most powders. However, if the material has a large difference in specific gravity or requires the addition of liquid, special designs may be needed for the ribbon structure or spray system.
Hygiene and Cleanliness Requirements: Is your product used in the food, pharmaceutical, or chemical industries? Does it need to be used in a GMP-compliant workshop? Our equipment can be made of 304 or 316L stainless steel and mirror-polished to meet different hygiene standards.
The price of a Sugar Powder Stainless Steel Ribbon Mixer is affected by the equipment material, volume, configuration requirements, whether it includes heating/cooling jackets, liquid spray devices, explosion-proof motors, etc., and the complexity of the control system. The price range is roughly between $1,000 and $20,000. For example, different models of sugar powder mixers can have reference prices ranging from several thousand to tens of thousands of yuan. It should be emphasized that this is only a broad market reference range. To obtain an accurate quote, we need to confirm the model and design a solution based on your specific mixing requirements, target output, and hygiene standards before we can provide you with a detailed quotation.
We understand that consistency is paramount; the taste, texture, and appearance of the final product depend on perfect uniformity. Our mixers' unique dual-belt agitators produce a powerful yet gentle convection mixing action, ensuring a uniform distribution of trace components in each batch, thus eliminating the risk of product variability.
Our equipment is constructed from premium 304 or 316 stainless steel, guaranteeing durability and corrosion resistance while meeting the most stringent hygiene standards in the food and pharmaceutical processing industries. Mirror-polished inner walls and a seamless design prevent material adhesion, simplify cleaning, and significantly reduce downtime between batches. We offer a full range of capacity options, from 50 kg/batch laboratory equipment to 1000 kg/batch industrial-grade mainframes, and can customize features such as heating/cooling jackets or liquid spray systems to suit your unique processes.
How long does sugar powder mixing take?
Mixing time is 8 to 20 minutes to achieve uniformity. The specific processing time depends on the material characteristics, formula complexity, and equipment model. Generally, the optimal time can be determined through pre-production process verification, effectively ensuring the consistency of each batch.
What is the capacity of the ribbon mixer?
We typically offer various standard sizes, including 50kg, 100kg, 500kg, and 1000kg/batch, corresponding to effective loading capacities of approximately 30-700kg. We also support non-standard customization based on customer production needs, flexibly designing larger or smaller capacity equipment to meet different production scenarios.
Can the mixer be customized?
Yes, it can be customized. We can personalize the design according to your specific requirements, including materials, functions, discharge methods, and the degree of automation in the control system, ensuring the equipment precisely matches your production process.
